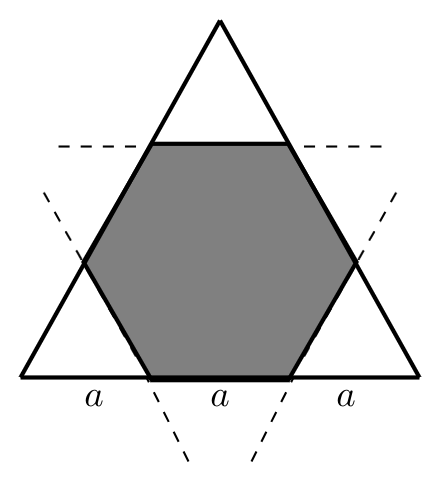

Corners are cut from an equilateral triangle to produce a regular convex hexagon as shown in the figure above. The ratio of the area of the regular convex hexagon to the area of the original equilateral triangle is

GATE 2021 PREVIOUS QUESTION PAPER

GENERAL APTITUDE

ELECTRONICE & COMMUNICATION 2021 GATE EXAM

Question:

Corners are cut from an equilateral triangle to produce a regular convex hexagon as shown in the figure above. The ratio of the area of the regular convex hexagon to the area of the original equilateral triangle is

(A) 4 : 5

(B) 5 : 6

(C) 3 : 4

(D) 2 : 3

ANSWER : D

Given that, corners are cut from an equilateral triangle to produce a regular convex hexagon. The smaller triangles cut are equilateral triangles (If we cut off corners to create a regular hexagon, then each angle of the hexagon is

120∘${120}^{\circ }$, and so each angle of every removed triangle is 60∘${60}^{\circ }$ making these triangles equilateral)

Let the original triangle side be 3a.$3a.$

The area of regular convex hexagon H1=33√2s2,$H_1=\frac{3\sqrt{3}}{2}{s}^2,$ the area of equilateral triangle T1=3√4s2,$T_1=\frac{\sqrt{3}}{4}{s}^2,$ where s$s$ is the side length.

Now, H1=33√2a2,A1=3√4(3a)2=93√4a2$H_1=\frac{3\sqrt{3}}{2}{a}^2,A_1=\frac{\sqrt{3}}{4}(3a{)}^2=\frac{9\sqrt{3}}{4}{a}^2$

The required ratio =H1A1=33√2a293√4a2=23.$={\displaystyle \frac{H_1}{A_1}}={\displaystyle \frac{\frac{3\sqrt{3}}{2}{a}^2}{\frac{9\sqrt{3}}{4}{a}^2}}=\frac{2}{3}.$

∴$\therefore$ The ratio of the area of the regular convex hexagon to the area of the original equilateral triangle is 2:3.$2:3.$
